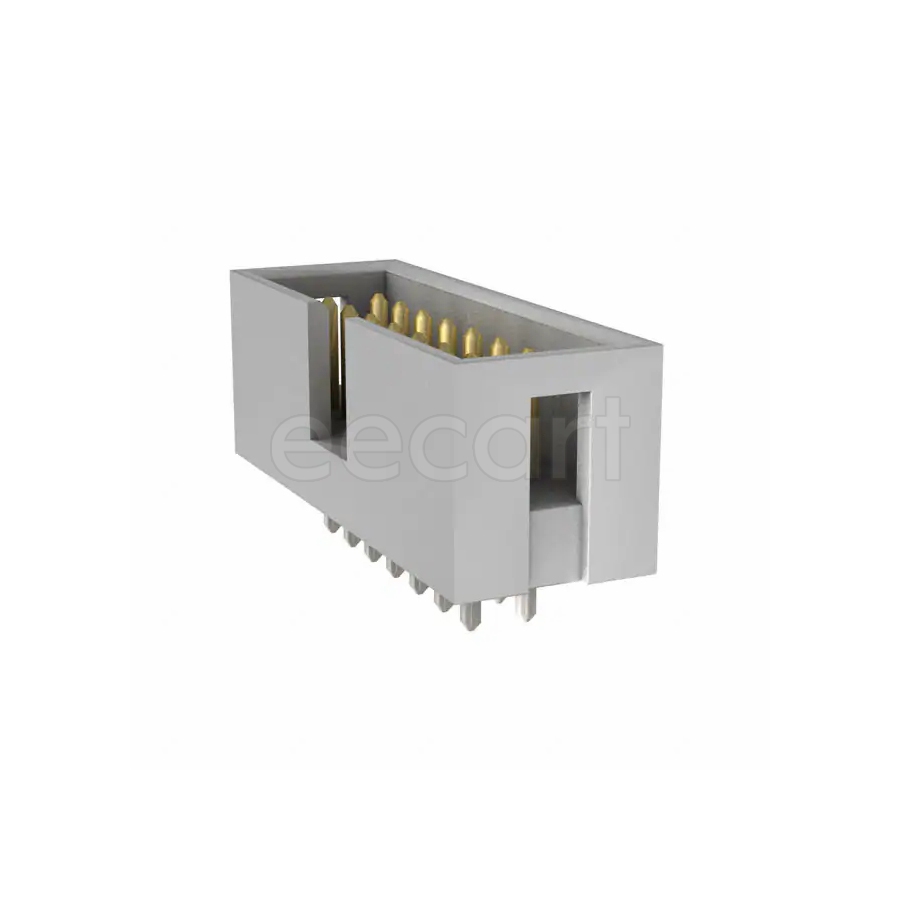

AWHW 14G-0202-T
Manufacturer:
Assmann WSW Components
Mfr.Part #:
AWHW 14G-0202-T
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:14 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 8.8 mm |
| Width | 25.4 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 14 |
| Height | 12.3 mm |
| Packaging | Tube |
| Voltage Rating | 250 V |
| Depth | 9.1 mm |
| RoHS | Compliant |
| Contact Plating | Gold, Nickel |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Grey |
| Number of Contacts | 14 |
| Connector Type | Header |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polybutylene |
| Mating Post Length | 5.7 mm |
